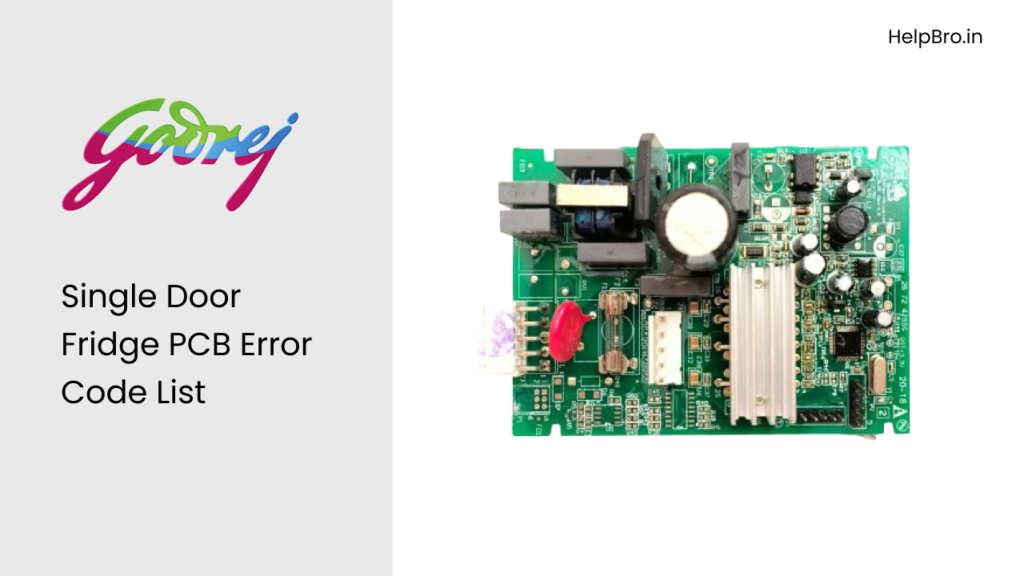

Godrej Fridge PCB Blink Error Code
Md AFSAR •
If your Godrej single door fridge is showing a blinking PCB error code, it means the control board has detected a system fault. Each blink pattern represents a specific issue. Refer to the error code table above to identify the exact fault and troubleshoot accordingly.
| Blink | Condition | Possible Faults |
|---|---|---|
| On for 1sec when given power supply | Power On | No fault |
| 1 | Other Fault (EEPROM fault/ Reverse Connection Problem | PCB failure or Supply connections reversed |
| 2 | AC Input Voltage Fault | Voltage below 110V or above 275V |
| 3 | Compressor Open Fault | Compressor winding open or Supply from compressor to PCB open or PCB fault |
| 4 | Compressor Start-Up Fault | PCB, Compressor or Sealed system fault |
| 5 | Compressor Break-In Fault | PCB, Compressor or Sealed system fault |
| 6 | IPM over temperature fault | PCB fault |
| 7 | RPM variation fault | PCB, Compressor or Sealed system fault |
| 8 | Earth Leakage Fault | Compressor Ground, if post 8 blink if PCB goes to 4 Blink then PCB could be faulty |
| 9 | FC Temperature Sensor fault | Defrost Sensor not connected or PCB issue |
| Blinks at 1sec rate | Self-test Mode | No Fault |

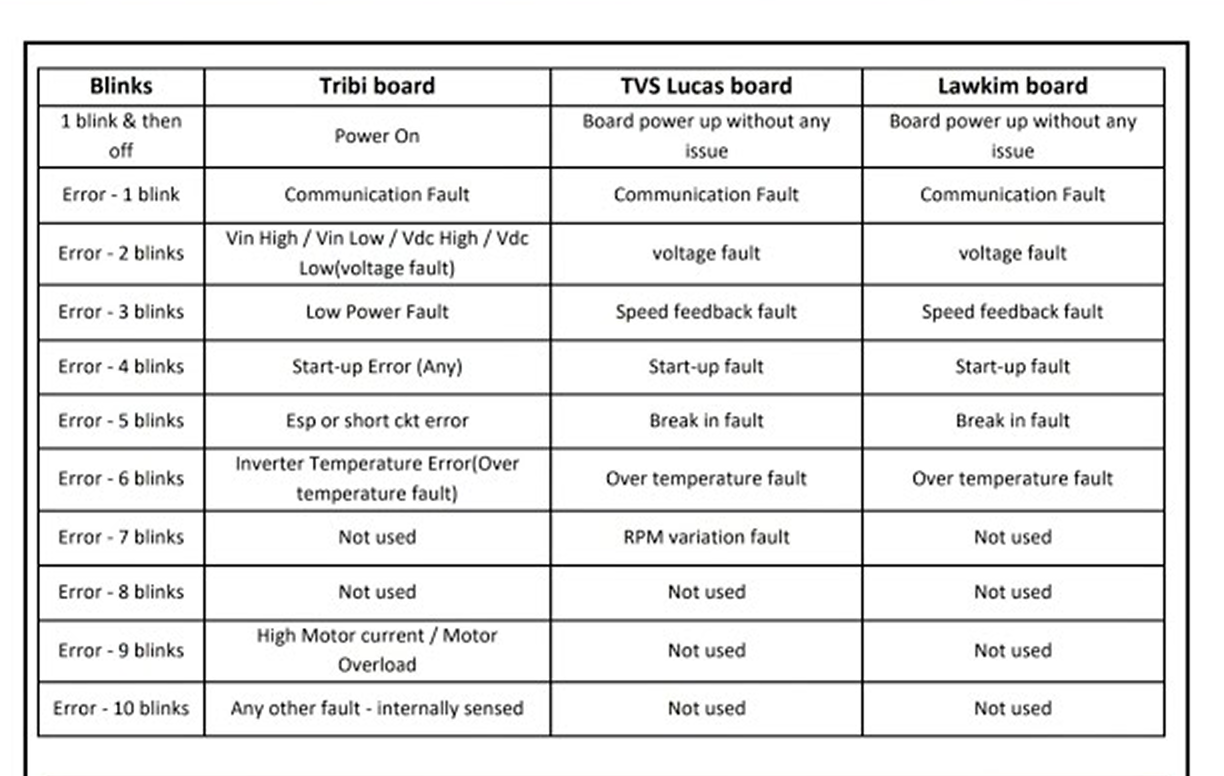

Godrej Fridge Different PCB Variant Error Codes
