Samsung Double Door Fridge PCB Error Code
Md Adnan •
If your Samsung double door fridge is showing a PCB error code, it means the control board has detected a system malfunction. Each error code corresponds to a specific component or function within the refrigerator. Refer to the error code table above to identify the exact issue and carry out the correct troubleshooting steps.

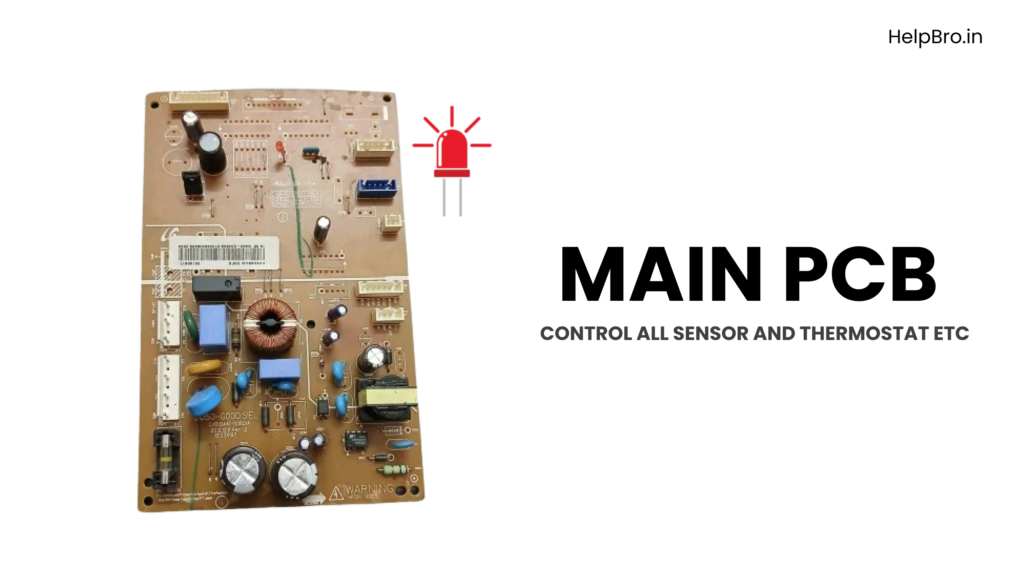

Main PCB Error Codes
| Blink Time | Meaning |
|---|---|
| 2 | Defrost Sensor Fault |
| 3 | Ambient Temperature Sensor Fault |
| 5 | Over ICE Problem in Freezer/Sensor Fault |
| 6 | Temperature Sensor Fault (inside Freezer) |
| 9 | Thermostat Fault (Rotary Switch Error) |
| 10 | Compressor Module Related Problem (check Power PCB Error) |
| 11 | Fan Motor Fault |

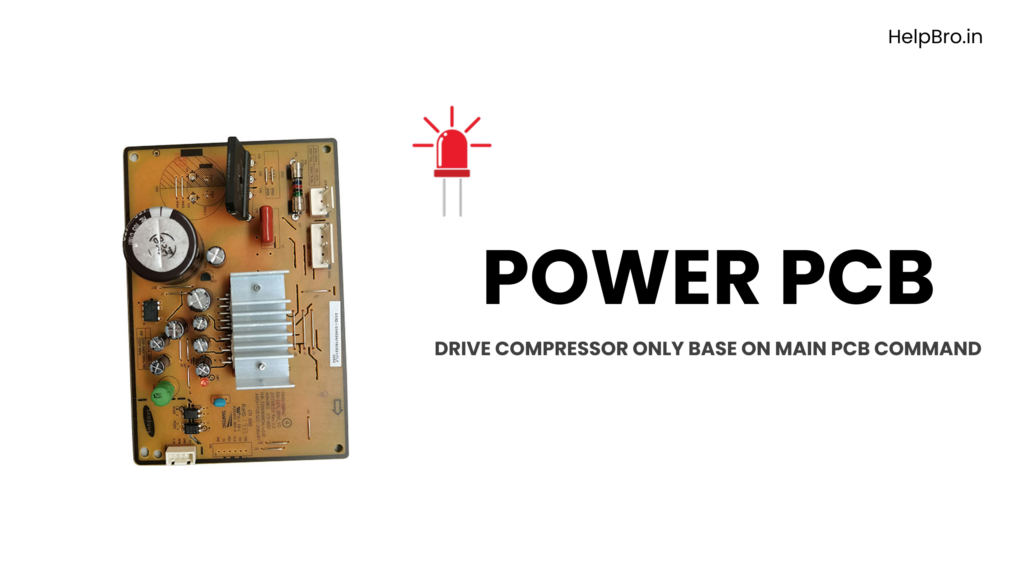

Power PCB Error Codes
| Blink Time | Meaning |
|---|---|
| 1 | PCB Defective |
| 2 | Low Voltage Protection/PCB Defective |
| 3 | 1. Compressor Problem (90%) chance 2. PCB Defective (10%) chance |
| 5 | Over Low or High Voltage Protection |
| 6 | Over High Voltage Protection |
